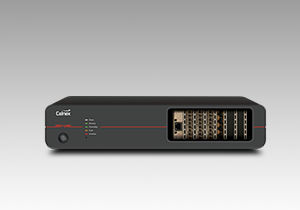

Calnex SNE
|
Attero-100G
|
Attero-X
|
Attero-V
|
|
Products |
 |
 |  |
 |
|
Ethernet Rates |
Up to 25G | 25G, 40G, 100G | Up to 10G | Up to 1G |
|
Interfaces |
100M & 1G Elect: RJ45
1G Optical: SFP
10G Optical: SFP+
25G Optical: SFP28 | 40G: QSFP+ (LR4/SR4)
100G: CFP2 (LR4/SR4)
100G: CXP (SR10) | 100M & 1G Elect: RJ45
100M Optical: SGMII
1G Optical: SFP
10G Optical: XFP, SFP+ | Virtual |
|
Number of Profiles (total) |
Unlimited | Optional 2,4,8,16 | Optional 4,8,16 | 4 |
|
Accuracy/Resolution |
10us/10us | 5ns/0.1us | 5ns/0.1us | 1ms/1ms approx. |
|
Full Line Rate Delay |
0.5s at 25G
0.5s at 10G
1.25s at 1G | 200ms at 40G
80ms at 100G | 8s at 1G
800ms at 10G | 100s (sub line-rate) |
|
Delay Boost at Line Rate |
0ms to 4secs at 25G
0ms to 4secs at 10G
0ms to 10secs at 1G | 640ms at 40G
256ms at 100G |  | |
|
Automation via LAN |
 | | | |
|
Lost,Error,Repeat,Mis-Order Pkts |
| | | Lost Packets only |
|
Bandwidth Control (Police/Shape) |
| | | Future Option |
|
Jitter Packets |
| | | Future Option |
|
Command Sequencer, iTest Support |
| | | |
|
Capture and Replay |
| Future option | | |
|
Graph of Captured IPG |
| Future option | | |
|
Extended Delay Function |
 | | | |
|
MEF 18/G.8261 |
| | | |
